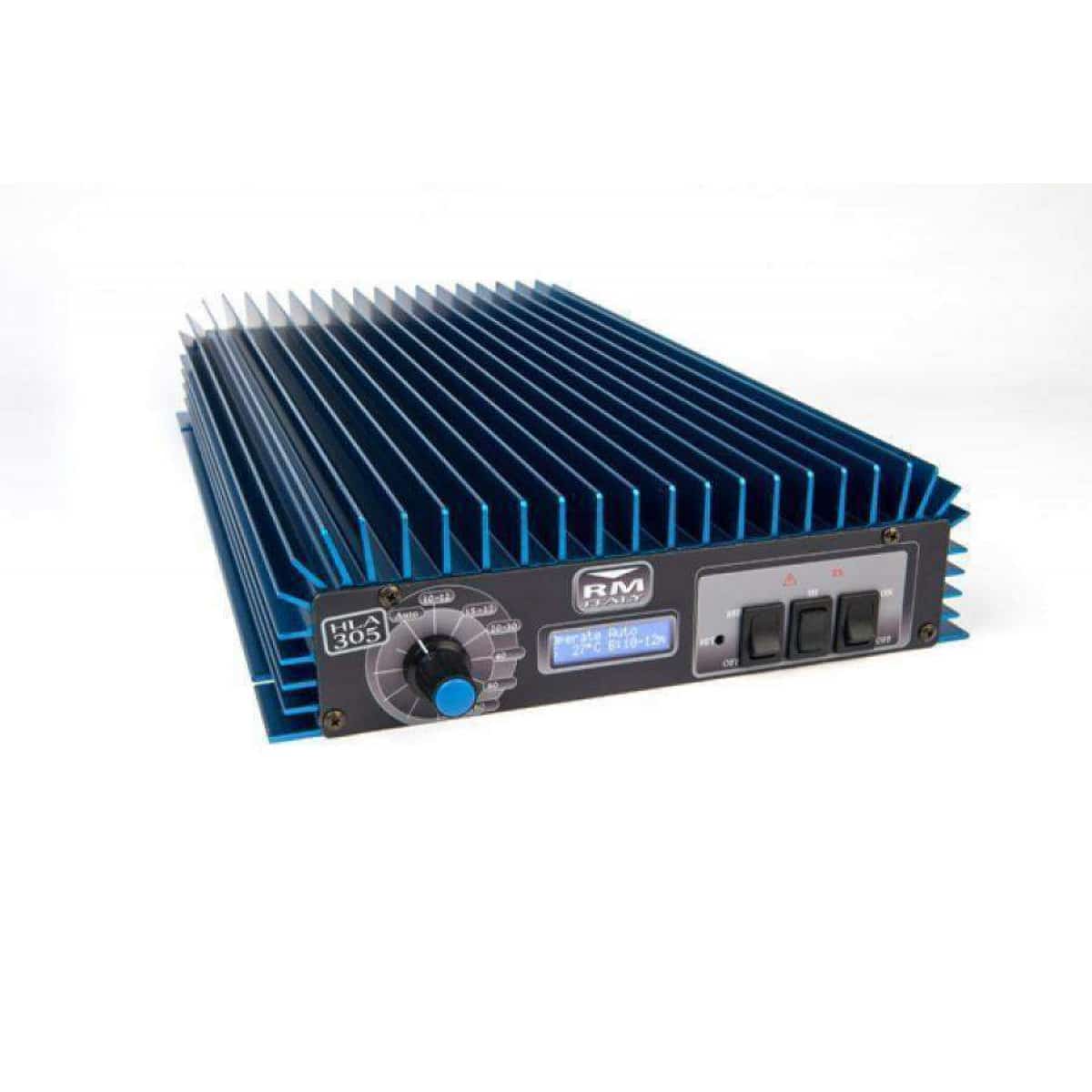

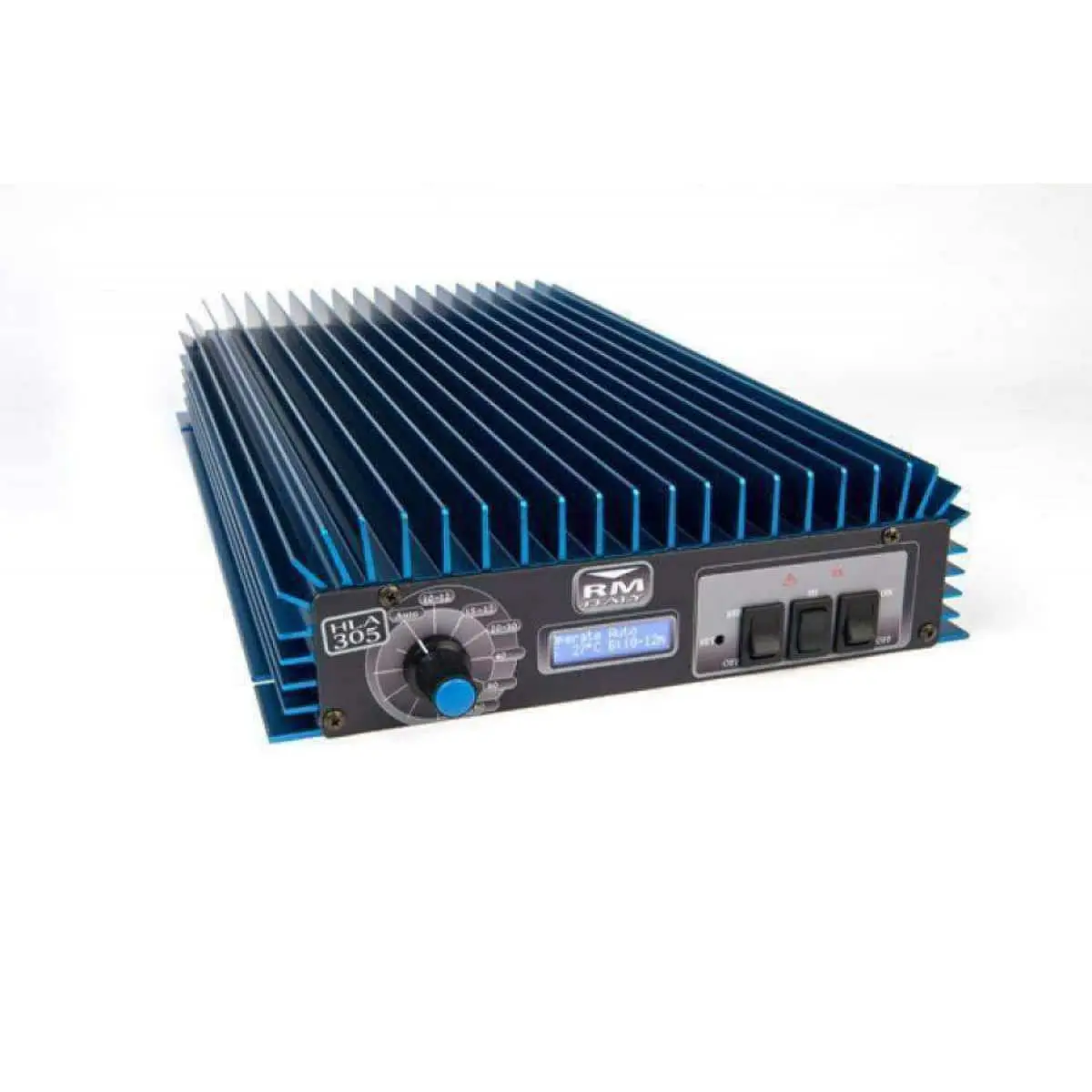

RM Italy HLA-305 Amplificatore HF
RM Italy HLA 305 Solid state HF Linear Power Amplifier
Frequency 1,5 – 30 MHz
Mode AM FM SSB CW RTTY
RF Drive 10 W typ. (15W max)
Output power P1db 200W CW ± 1db typ.
Gain 13,5 ± 1db P1db
Power voltage 13 Vcc ± 2V
Input Power 45 A Max
Input impedence 50Ω (unbalanced)
Output impedence 50Ω (unbalanced)
Final transister MRF 455 x 4
Circuit Class AB push-pull
Dimensions 240 x 67 (90HLA305V) x 450mm
Weight 4kg
